A conveyorized system configured with 1-4 stationary ultrasonic nozzles or one reciprocating nozzle for low to mid-volume production.
Visit How Ultrasonic Nozzles Work to learn more about the unique capabilities of ultrasonic spray.

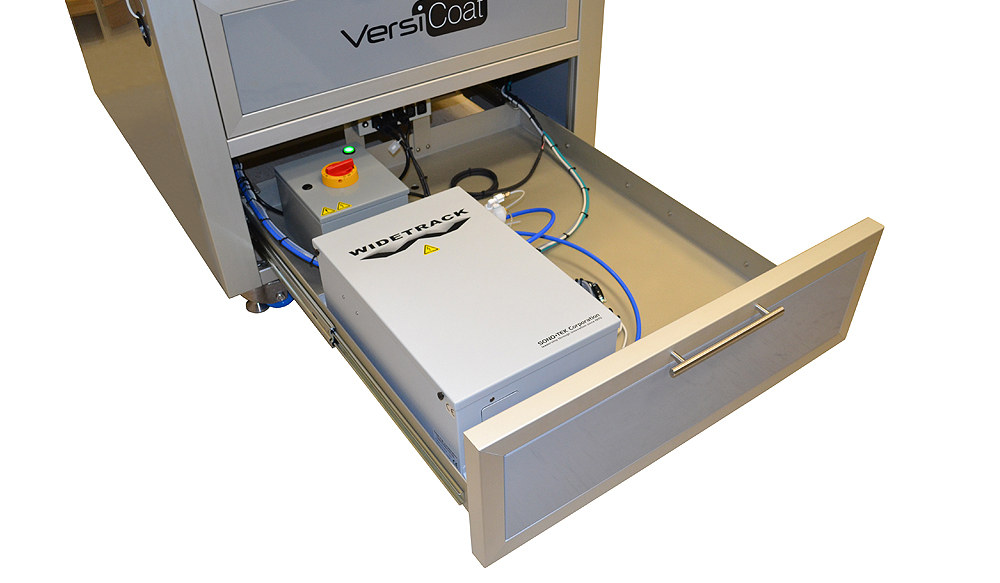

VersiCoat conveyorVersiCoat EboxVersiCoat exhaustVersiCoat openVersiCoat Conveyorized Production Volume Coating System
Alternative Energy & Nanomaterials
Glass & Industrial
Basic Specifications
| Floor space required: 198 cm H x 184 cm W x 213 cm D (78” H x 72.5” W x 84” D) |
| Enclosure dimensions: 163 cm H x 184 cm W x 122 cm D (64” H x 72.5” W x 48” D) |
| Control: Microprocessor with backlit LCD keypad |
| Power Requirements: 120, 220V +/- 10%, 50-60 Hz |
| Air: 552-689 kPa (80-100 PSI) at 20-400LPM (0.7-14 CFM) clean, dry oil-free |
| Certification: CE |
| Ultrasonic Nozzle Designs: Impact, Vortex, Propel, WideTrack Dual Jet |
System Options
| Head configuration: up to four ultrasonic heads |
| Liquid Delivery: Common Liquid Delivery: MicroFlow, SonoFlow Fusion, HyperFlow catalyst pump, gear pump |
